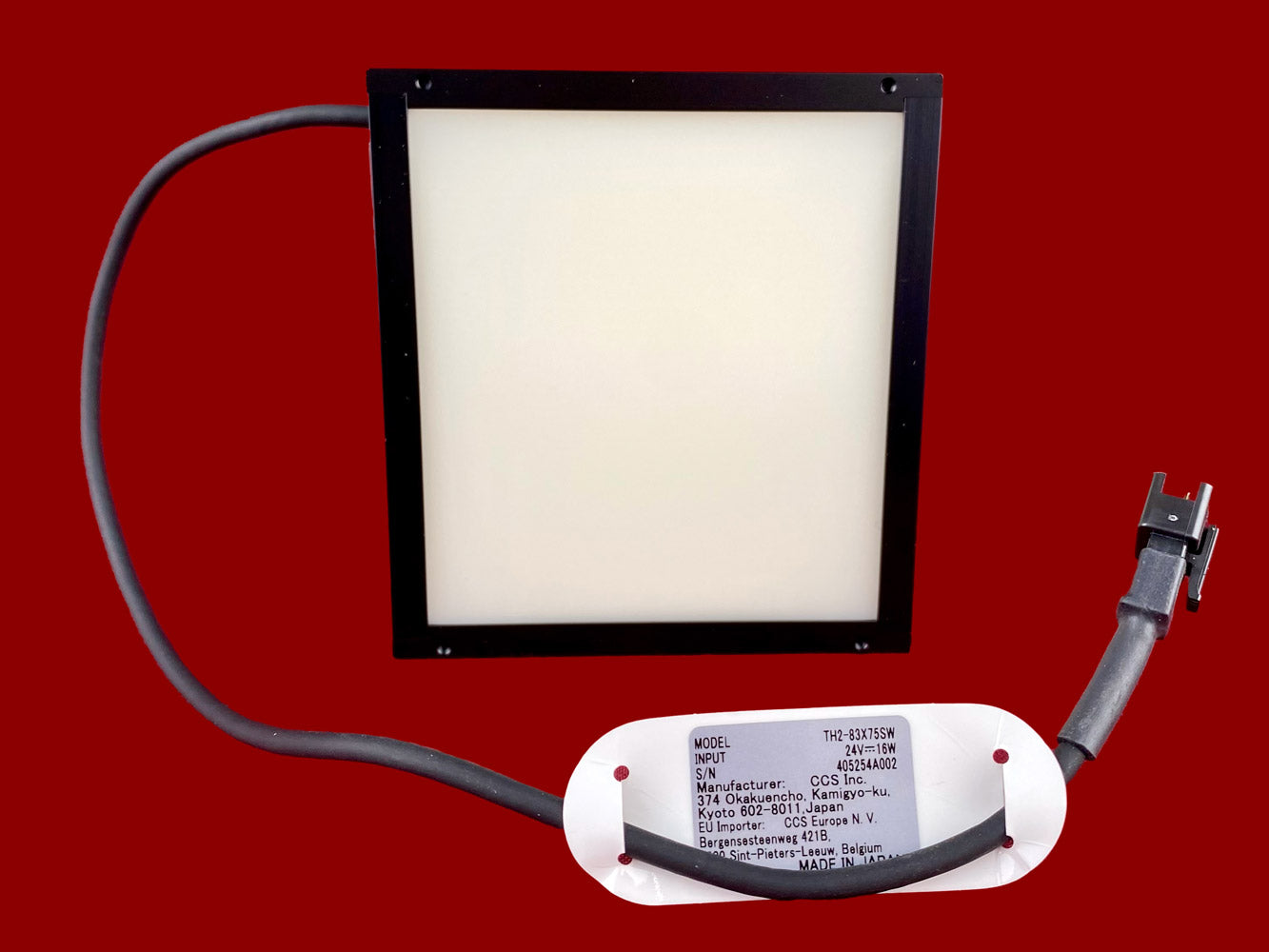

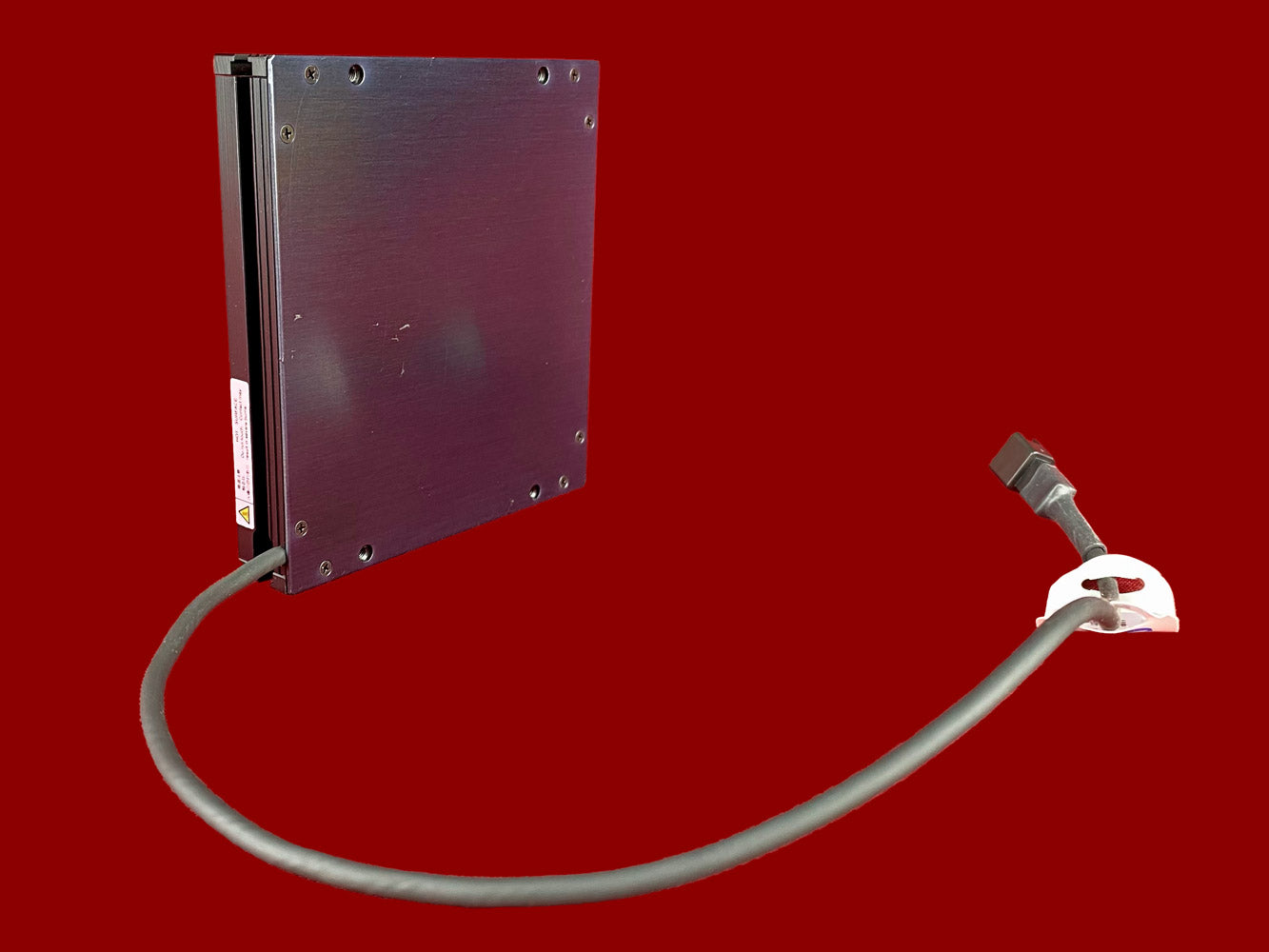

Technical data
| Manufacturer | CCS Inc. |
|---|---|
| Manufacturer part number | TH2-83X75SW |
| Condition | Used |
| Model family | TH2 |
| Model | Lighting unit |
| Product type | Safety Systems |
Description
LED color: White
Correlated color temperature: 5,800 K typ.
Dimensions: W 95 mm x D 87 mm x H 15 mm
Input voltage: 24VDC
Power consumption: max. 16 W
Polarity & signal: 1: (+), 2: NC, 3: (-)
Cable length: 300 mm
Housing material: Aluminum alloy, plastic
Input connector: SMR-03V-B
Conformity standards: CE, UKCA, RoHS, IEC 62471 (exemption)
Operating temperature and humidity: Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidity: Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method: Natural air cooling
Weight: max. 140 g
Accessories: User manual
Notes: The correlated color temperature is the same as for conventional products. TH2: 5,800 K (A-value for the light unit), Conventional products TH: 6,600 K (A-value for individual LEDs)
