Keyence

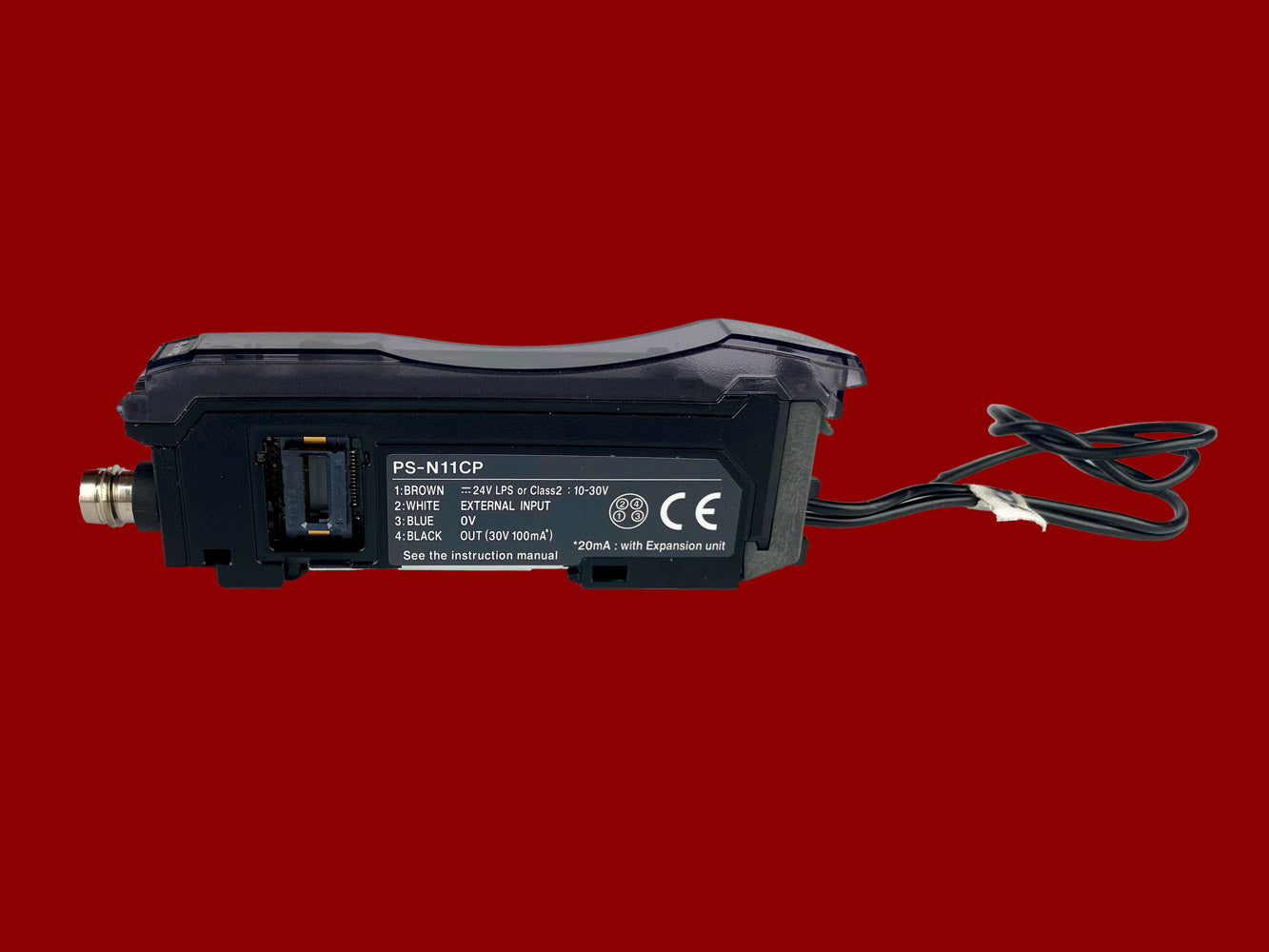

Keyence PS-N11CP PS-N measuring amplifier, version with M8-Stecker, main unit, PNP
Technical data
| Manufacturer | Keyence |
|---|---|
| Manufacturer part number | PS-N11CP |
| Condition | Used |
| Model family | PS-N |
| Model | Measuring amplifier, version with M8-Stecker, main unit, PNP |
| Product type | Sensors and Actuators |
Description
Type: M8 connection;
Output switching: PNP;
Main unit/expansion unit: main unit;
External inputs: output selection LIGHT-ON/DARK-ON (selectable via switch);
Timer function: timer OFF/OFF-delay timer/ON-delay timer/one-shot timer, time duration selectable: 1 ms to 9999 ms, maximum error vs. setpoint: ±10% max.;
Control output: PNP, open collector 30 V (without expansion), 100 mA max., (with expansion) 20 mA max. per output, residual voltage 1.2 V max. (when output current is 10 mA or less)/2.2 V max. (when output current is 10 to 100 mA);
Number of units for interference suppression: 4 for TURBO/SUPER/ULTRA/MEGA (when DOUBLE is set, the number of interference prevention units doubles);
Response time: 500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA);
External outputs: input time 2 ms (ON)/20 ms (OFF) or more;
Housing dimensions: H 32.6 mm × W 9.8 mm × L 78.7 mm.
