Wenglor

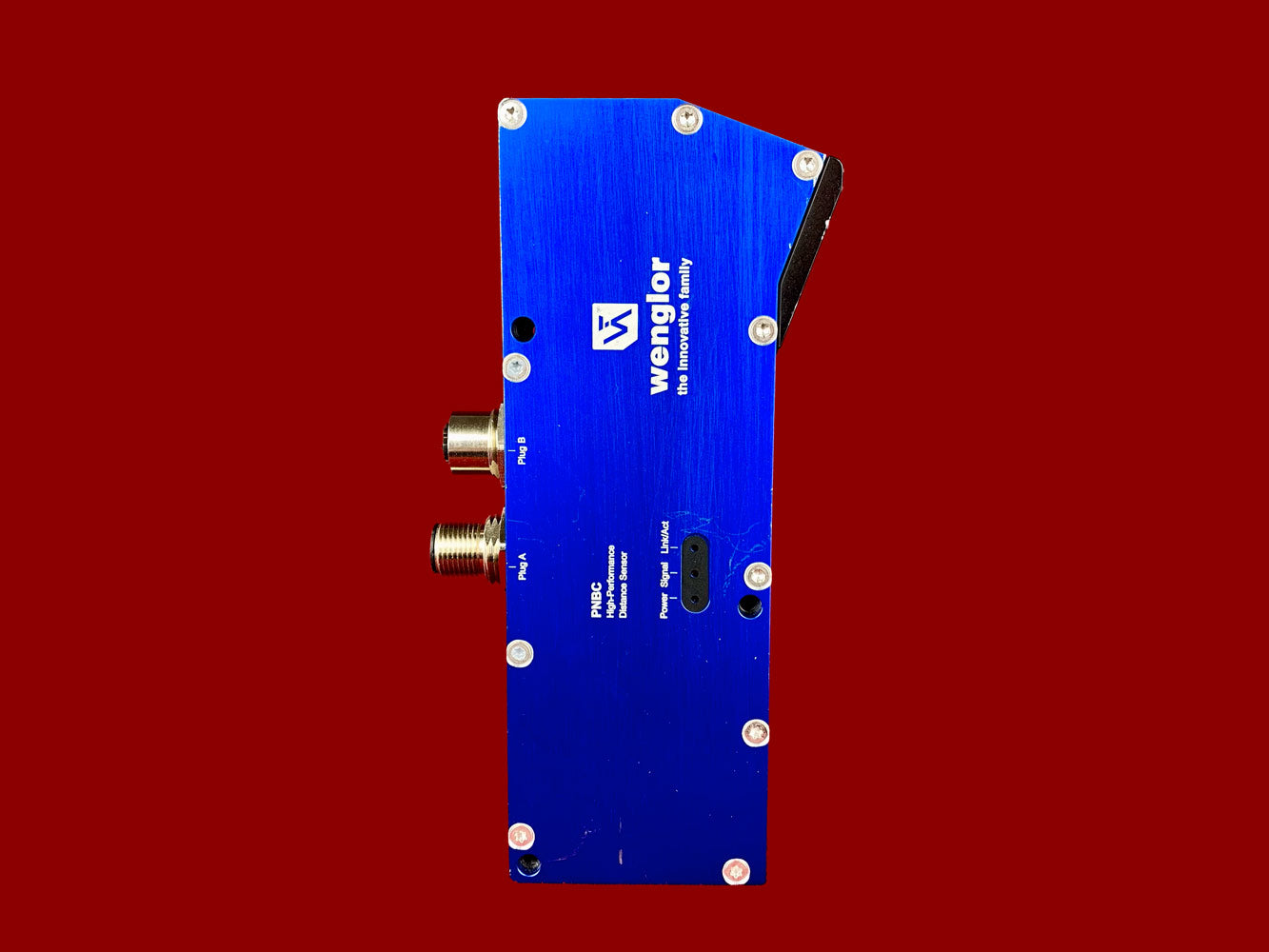

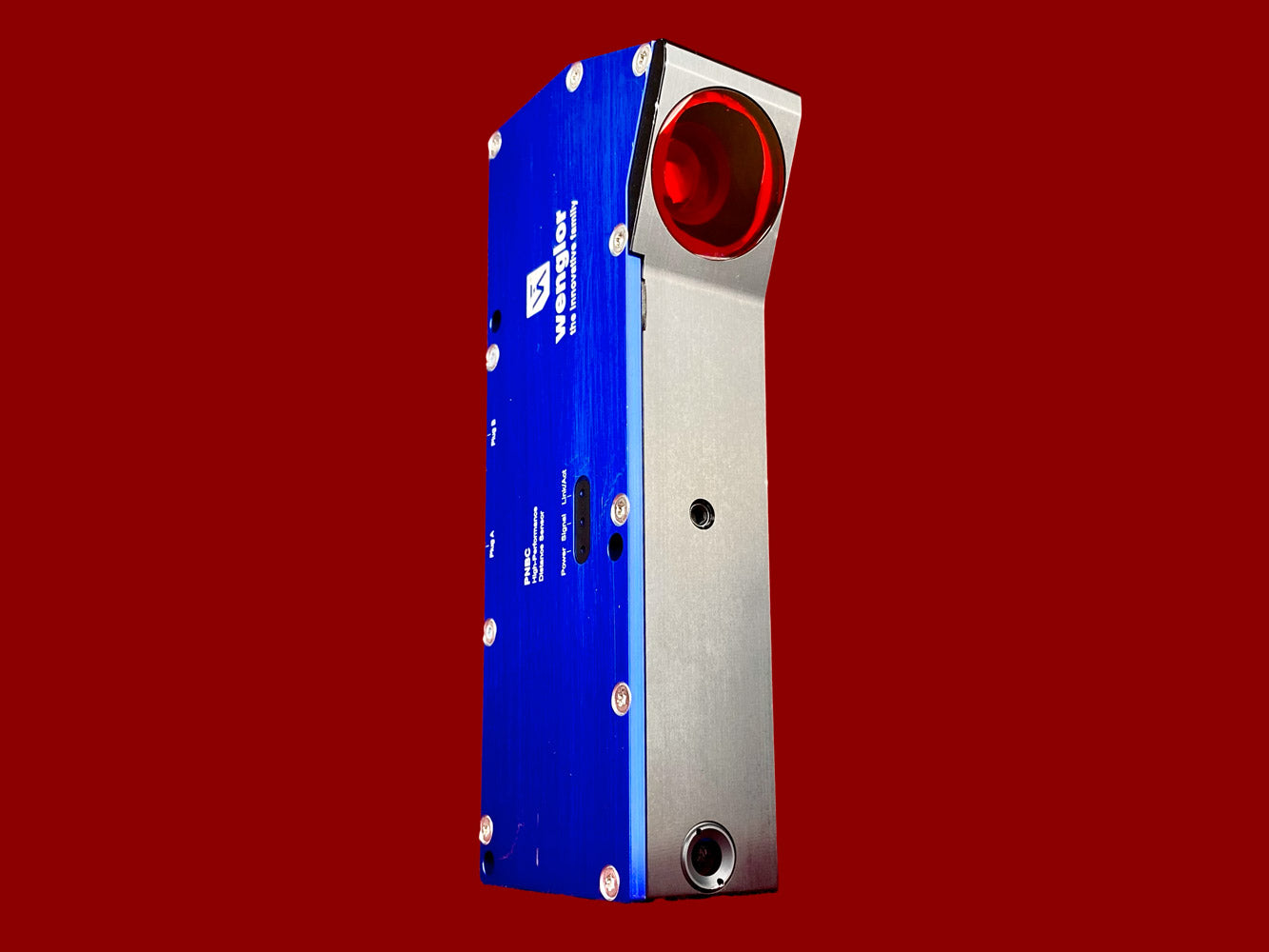

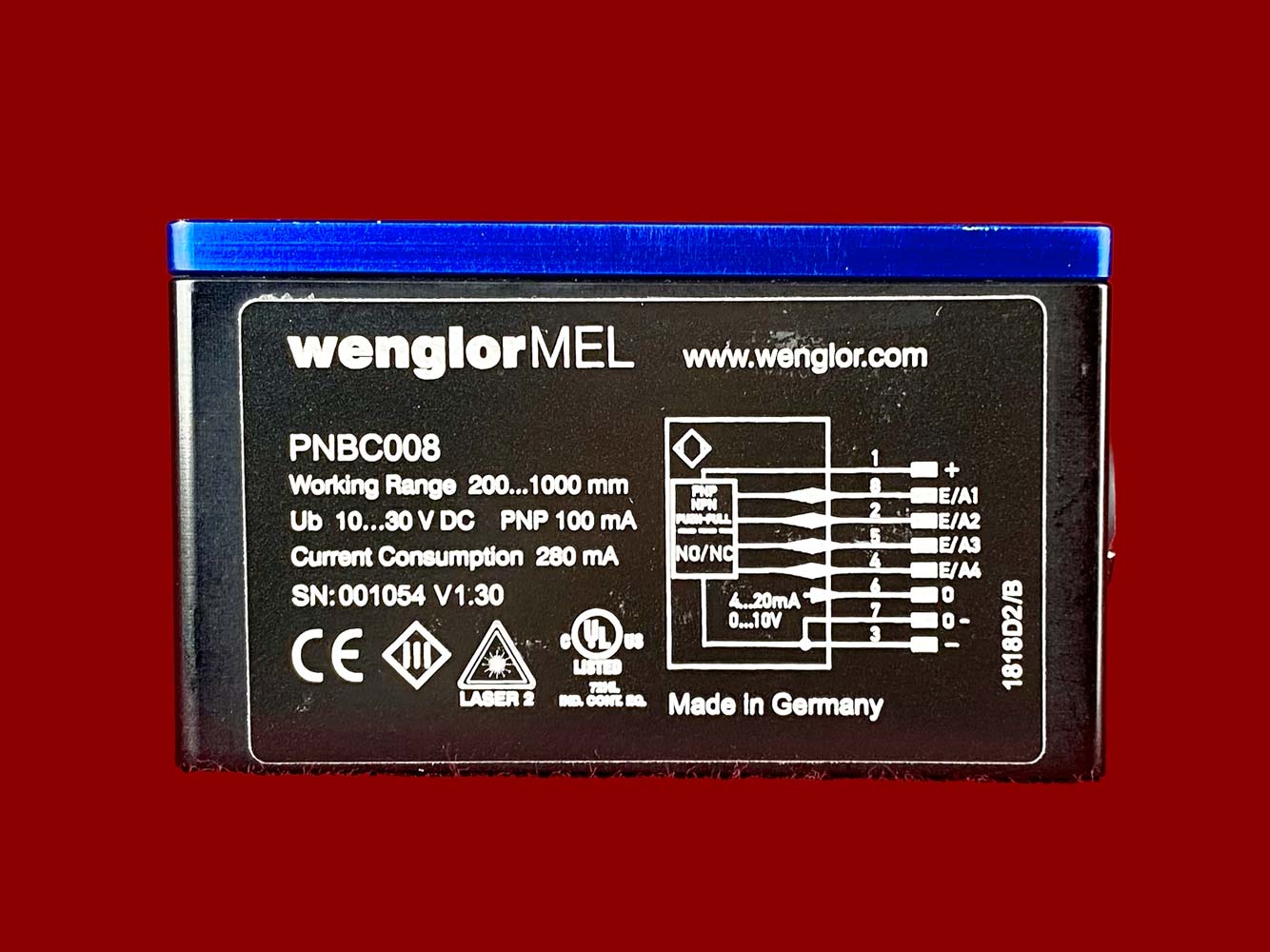

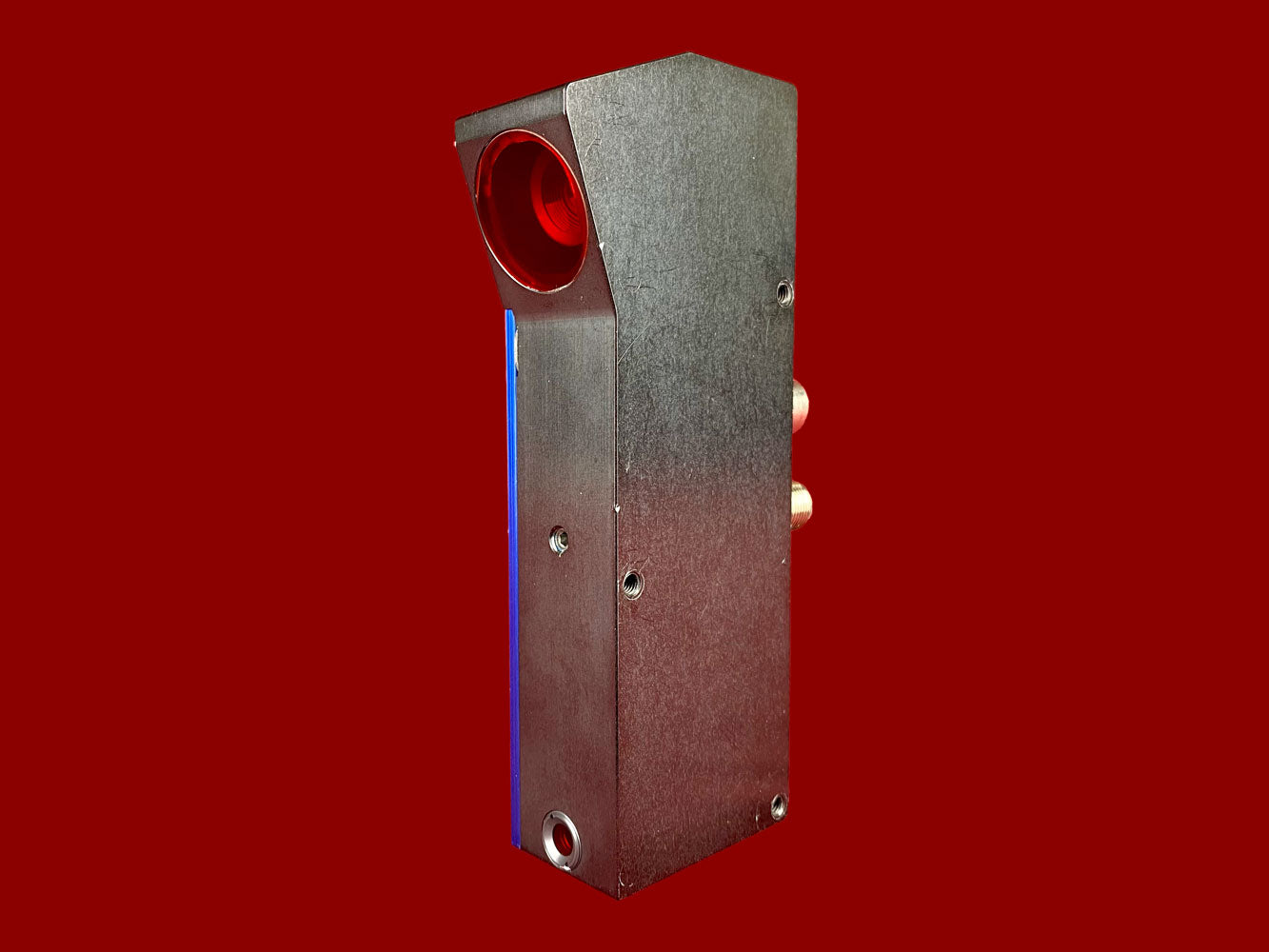

Wenglor PNBC008 Optoelectronic Sensor Laser Distance Sensor Triangulation
Technical data
| Manufacturer | Wenglor |
|---|---|
| Manufacturer part number | PNBC008 |
| Condition | Used |
| Model family | Optoelectronic sensor |
| Model | Laser distance sensor triangulation |
| Product type | Sensors and Actuators |
Description
Optical Data:
Working range: 200 to 1,000 mm
Measuring range: 800 mm
Resolution: 12.2 µm
Linearity deviation: 375 µm
Light type: Laser (red)
Wavelength: 658 nm
Service life (at +25 °C): 100,000 hours
Laser class (acc. to EN 60825-1): 2
Maximum permissible ambient light: 10,000 lux
Light spot diameter: < 1.6 mm
Electrical Data:
Supply voltage: 15 to 30 V DC
Current consumption (at Ub = 24 V): 280 mA
Switching frequency: 15 kHz
Response time: < 33 µs
Output rate: 10 to 30,000 /s
Temperature drift: 0.005 %/K
Temperature range: -10 to 40 °C
Number of switching outputs: 4
Voltage drop at switching output: < 1.5 V
Switching current at switching output: 100 mA
Analog output: 4 to 20 mA
Short-circuit protected: Yes
Reverse polarity and overload protected: Yes
Teach-in mode: VT, FT
Interface: Ethernet TCP/IP
Transfer rate: 100 Mbit/s
Protection class: III
FDA Accession Number: 1620645-000
Mechanical Data:
Adjustment type: Teach-in
Housing material: Aluminium, anodized
Degree of protection: IP67

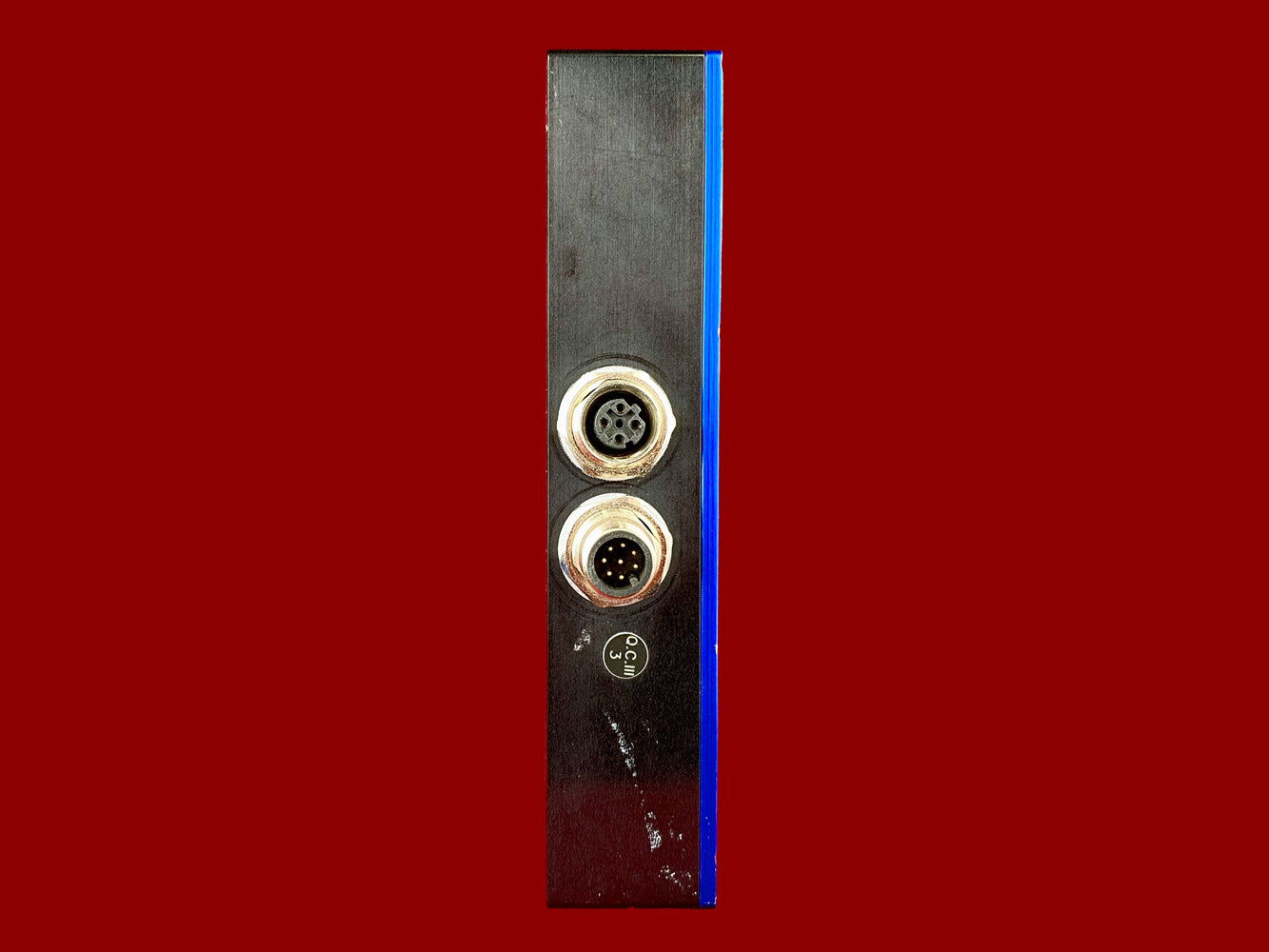

Connection type: M12 × 1; 8-pin
Ethernet connection type: M12×1; 4-pin, D-cod.
Optical cover: Glass
Weight: 352 g
