Technical data
| Manufacturer | Wenglor |
|---|---|

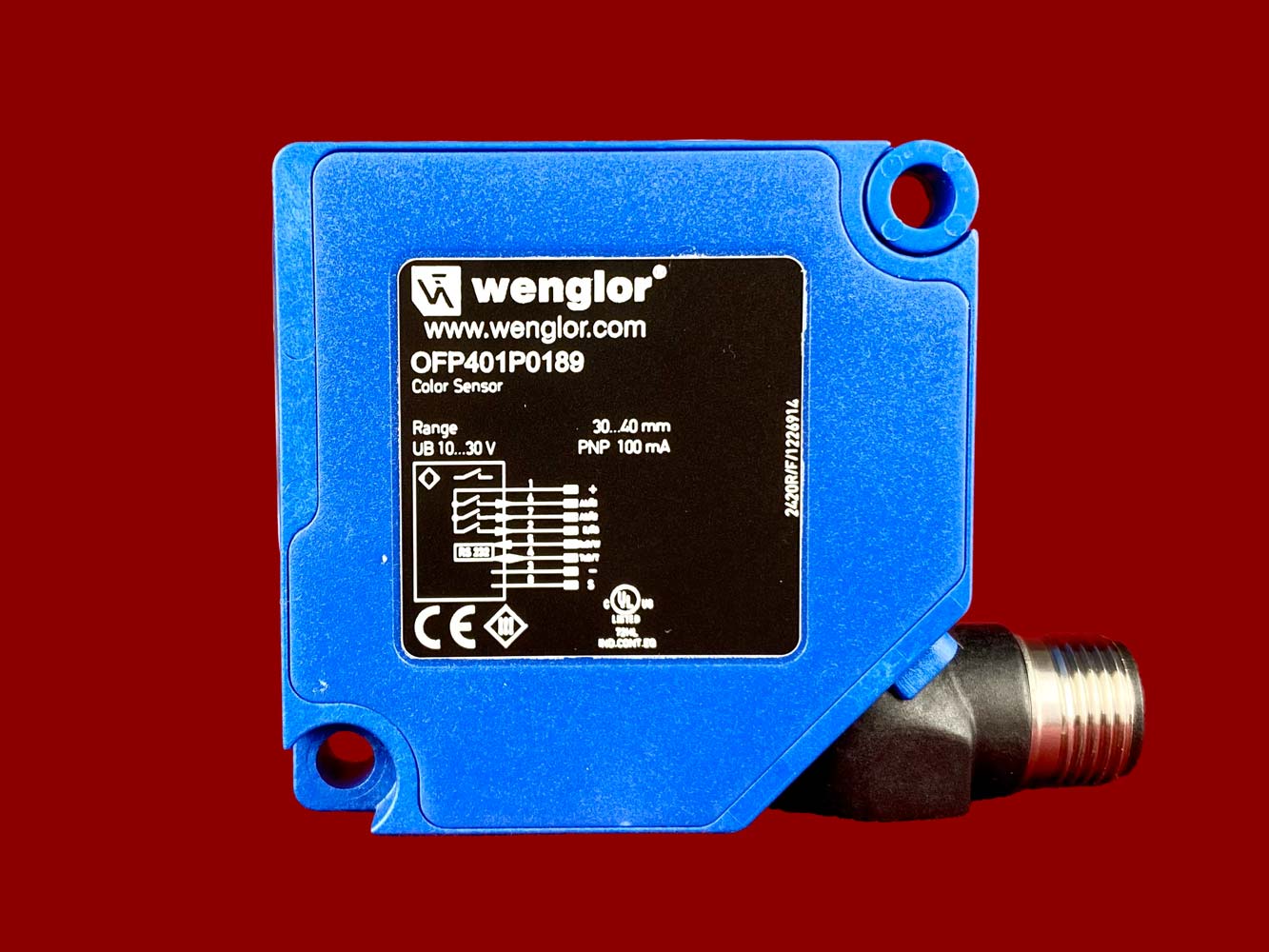

| Manufacturer part number | OFP401P0189 |
| Condition | Used |
| Model family | Optoelectronic sensor |
| Model | Color sensor |
| Product type | Sensors and Actuators |
Description
Optical Data:
Working range: 30 to 40 mm
Working distance: 35 mm
Light type: White light
Service life (at +25 °C): 100,000 hours
Maximum permissible ambient light: 10,000 lux
Light spot diameter: 3 mm
Electrical Data:
Supply voltage: 10 to 30 V DC
Current consumption (at Ub = 24 V): < 80 mA
Switching frequency: 1.8 kHz
Response time: ~ 1.8/1000 µs × filter
Temperature range: -25 to 60 °C
Number of switching outputs: 3
Voltage drop at switching output: 1.5 V
Switching current at PNP switching output: 100 mA
Short-circuit protected: Yes
Reverse polarity protected: Yes
Overload protected: Yes
Teach-in mode: FT
Interface: RS-232
Number of digital inputs: 2
Protection class: III
Mechanical Data:
Adjustment type: Menu (OLED)
Housing material: Plastic, ABS; Plastic, PC
Lens cover: Plastic, PMMA
Protection rating: IP68
Connection type: M12 × 1; 8-pin
Weight: 44 g
