Technical data
| Manufacturer | Euchner |
|---|---|

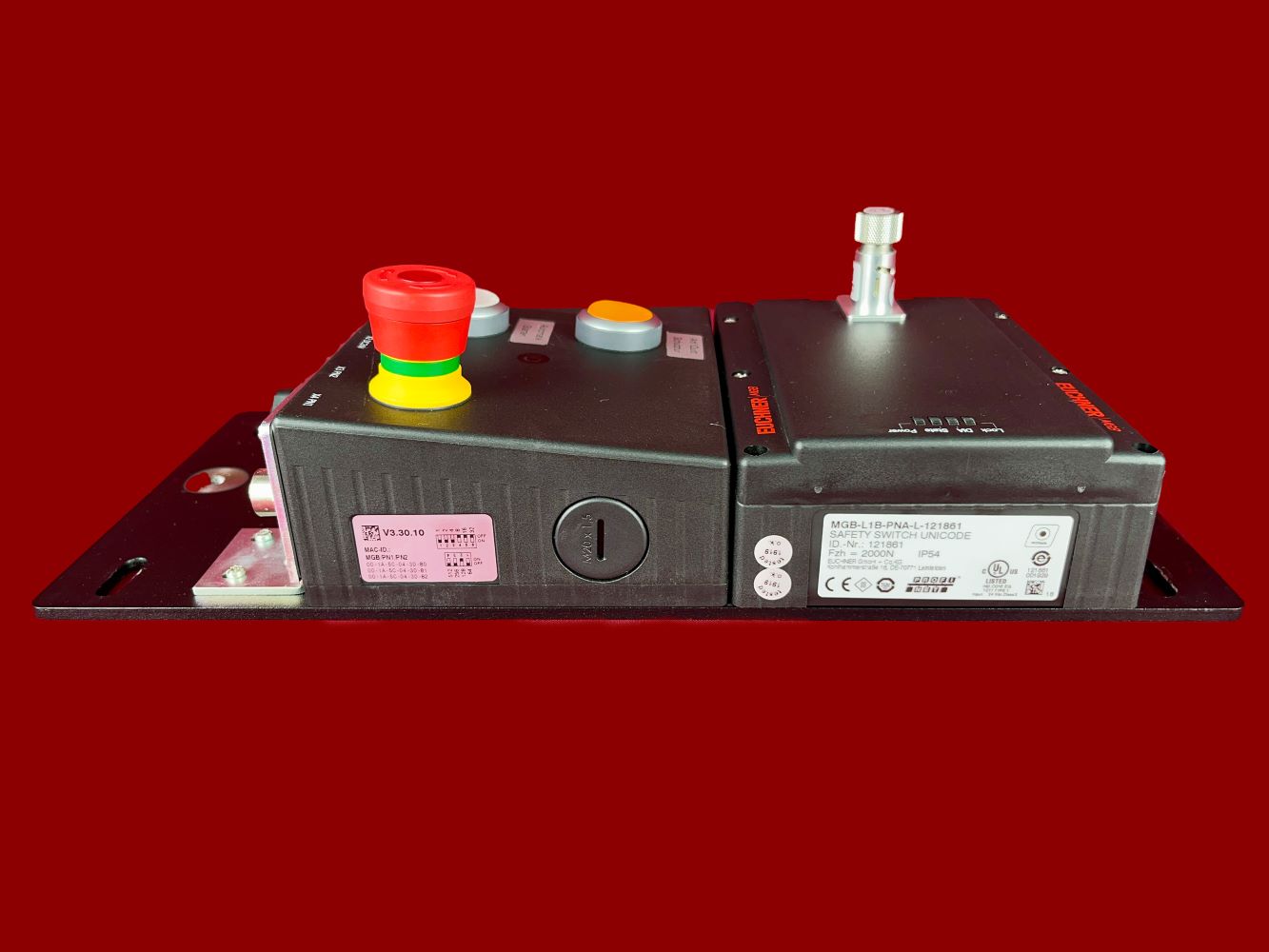

| Manufacturer part number | MGB-L1B-PNA-L-121861 |
| Condition | Used |
| Model family | MGB |
| Model | Evaluation module and bus module |
| Product type | Safety Systems |
Description
Working range
Secured switch-off distance s door position: max. 65 mm
Electrical connection data
Connection cable Ethernet: Profinet I/O cable, min. Cat. 5e
Rated insulation voltage Ui: 75 V
Rated impulse withstand voltage Uimp: 0.5 kV
EMC protection requirements: In accordance with EN 61000-4 and EN 61326-3-1
Maximum infeed current in connection block X1, X2: max. 4000 mA
Protection class: III
Current consumption: max. 500 mA
Transponder coding: Unicode
Degree of pollution (external, per EN 60947-1): 3
Power supply X1
External fuse protection: min. 1 A slow-blow
Operating voltage DC L1: 24 V DC -15% ... +10%
Auxiliary voltage DC L2: 24 V DC -15% ... +10%
Power supply X2
Operating voltage DC L1: 24 V DC -15% ... +10%
Auxiliary voltage DC L2: 24 V DC -15% ... +10%
Mechanical data and environment
Connection type per IEC 61076-2-101, Profinet I/O cable, min. Cat. 5e: 7/8" Power M12 D-coded, shielded
Mounting position: Door hinge DIN left
Switching frequency: 0.25 Hz
Response time
Door position: max. 550 ms switch-off time
Emergency stop / machine stop: max. 250 ms switch-off time
Bolt position: max. 550 ms switch-off time
Interlocking: max. 550 ms switch-off time
Shock and vibration resistance: in accordance with EN IEC 60947-5-3
Degree of protection: IP54
Ambient temperature at U = 24V DC: -20 ... +55 °C
Housing material: Glass-fibre reinforced plastic, zinc die-cast, nickel-plated, stainless steel
Holding force F: 2000 N
Interlocking principle: De-energised to actuate
Manufacturer/EU responsible person
