Technical data
| Manufacturer | ACTIA IME |
|---|---|
| Manufacturer part number | IME4103203 |
| Condition | Used |
| Model family | eCOM |
| Model | Vehicle diagnostic interface |
| Product type | Translation missing: en.ir.product.category.special industry solutions |
Description

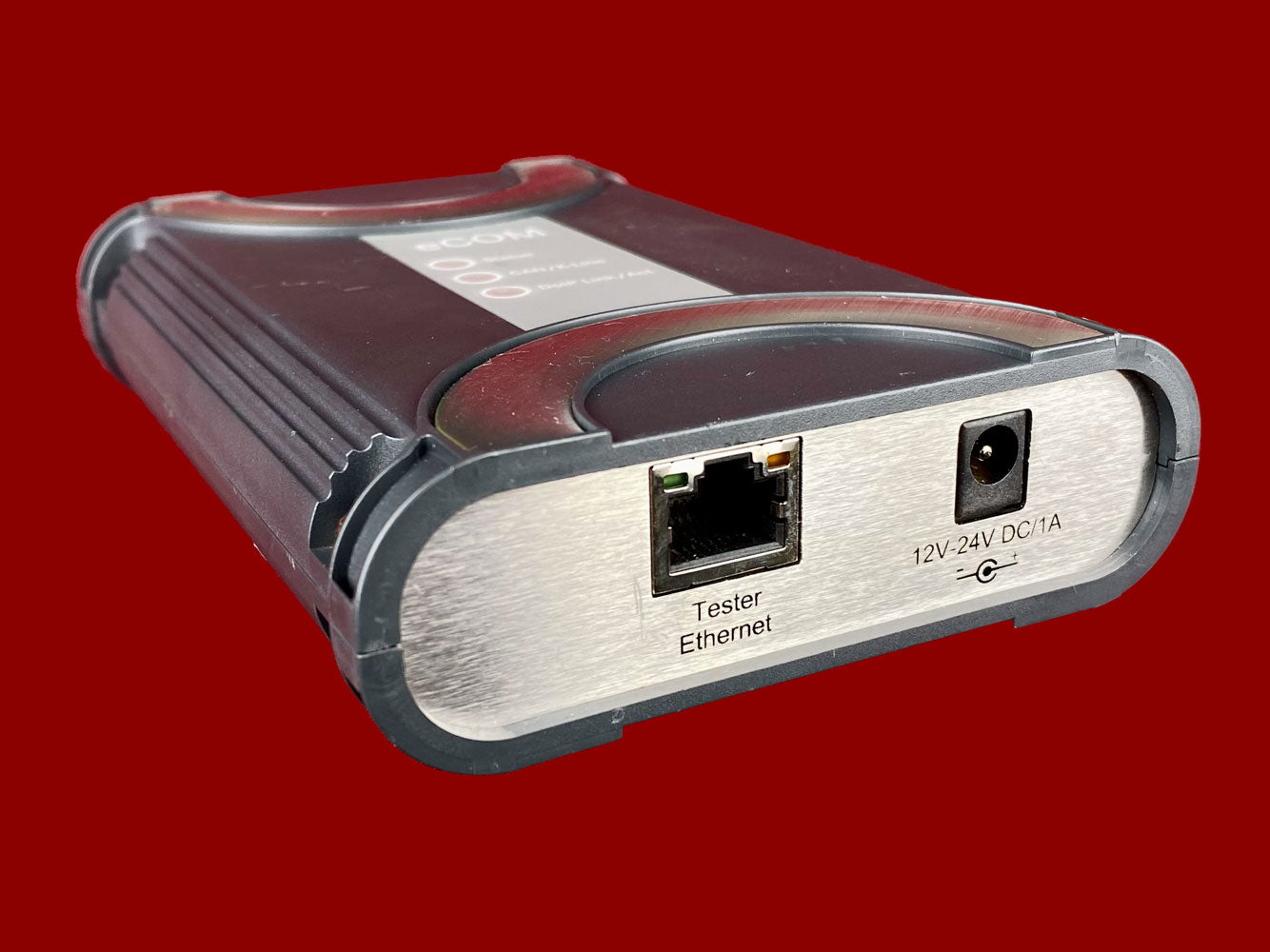

PC interface: Ethernet / USB
Power supply: 12/24 VDC
Operating temperature range: 0...45°C
Storage temperature: 20...70°C
Microcontroller: 32-bit MPC5200 @396MHz
Memory: 64MB RAM, 40MB Flash
Vehicle interface:
Galvanically isolated
CAN 1 (High-Speed)
CAN 2 (High/Low Speed)
K-Line
LIN
Vehicle Ethernet (DoIP, ISO 13400)
Clamp 15, Clamp 30

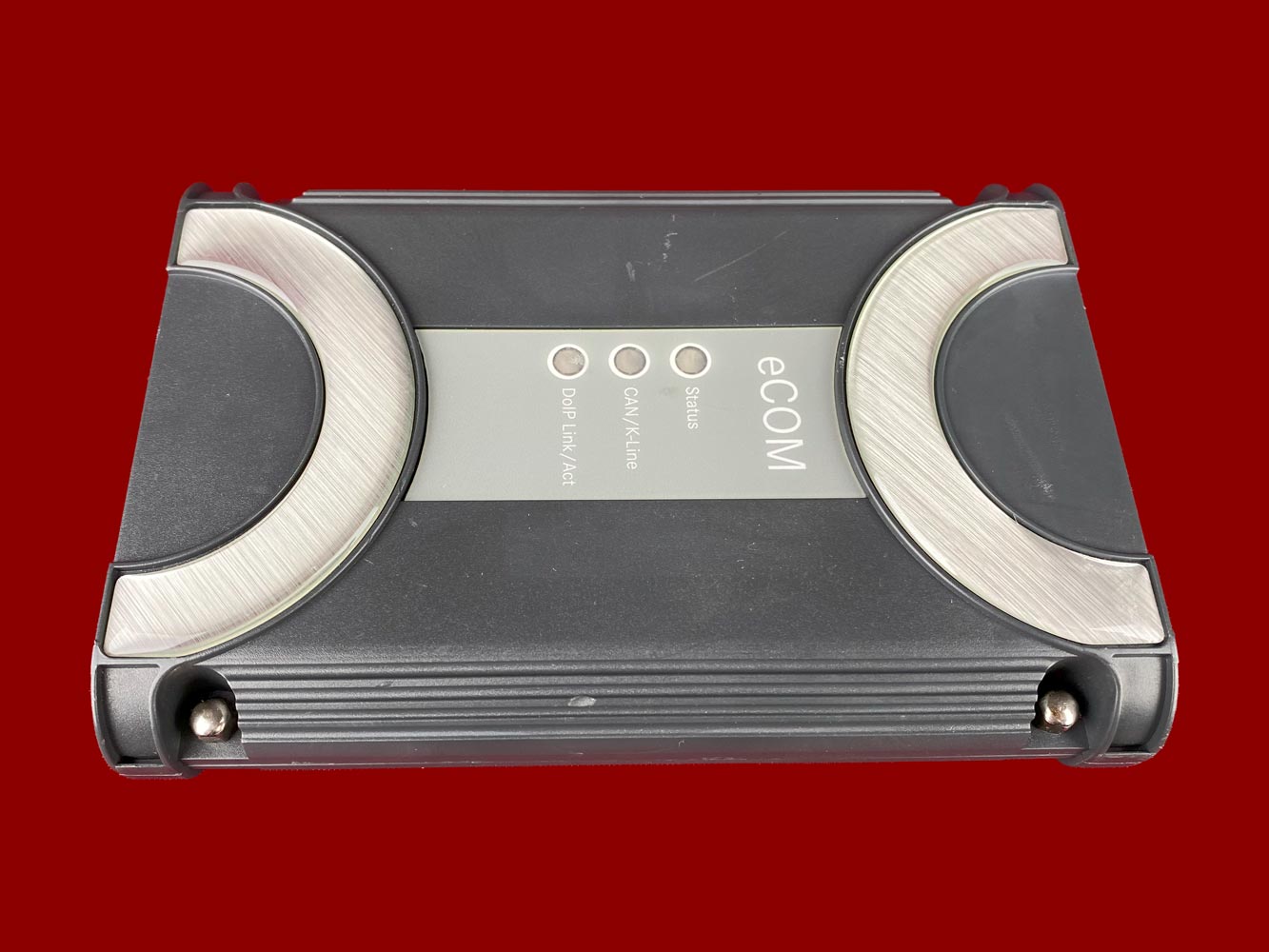

LED status:
Off – eCOM box not powered
Solid red – Boot process active
Solid green – Ready for operation
Green flashing – PDU API active
Solid red – Fault
Red flashing – System update in progress – do not switch off!
Technical data:
DoIP Link/Act:
Yellow – Vehicle Ethernet link
Green – Vehicle Ethernet activity
CAN / K-Link:
Green flashing
Yellow flashing – KLine/LIN communication
CAN1/2 communication
