Epic Power

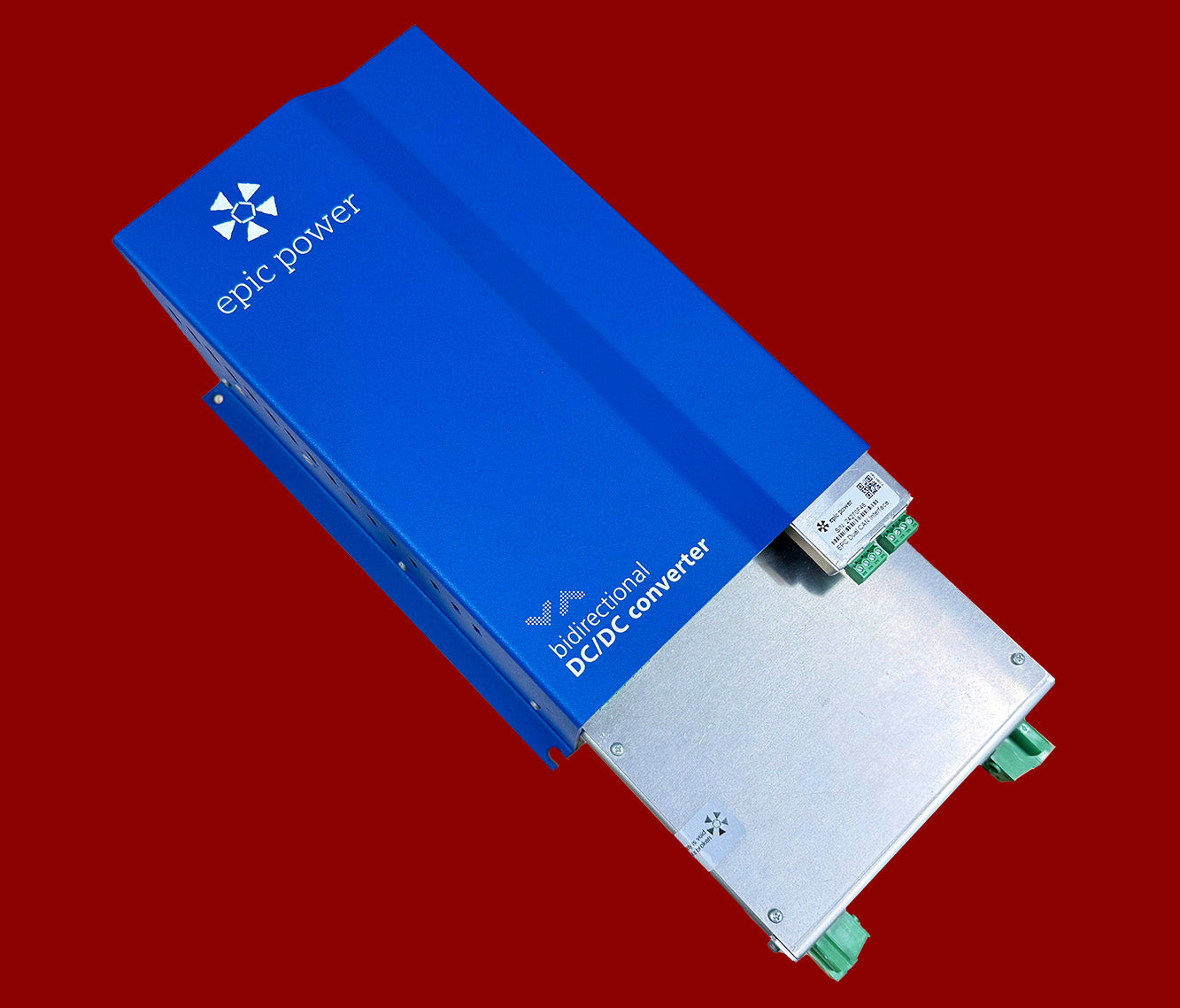

Epic Power EPC 8k 8380i DC/DC converter 8 kW bidirectional 800V 380V isolated
Technical data
| Manufacturer | Epic Power |
|---|---|
| Manufacturer part number | EPC 8k 8380i |
| Condition | Used |
| Model family | EPC DC/DC |
| Model | Bidirectional converter |
| Product type | Translation missing: en.ir.product.category.special industry solutions |
Description
Epic Power EPC 8k 8380i; Function type: galvanically isolated, bidirectional; Rated power: 8.0 kW; Peak power: 10 kW; High-voltage side input voltage: 500 to 848 V DC; High-voltage side maximum current: 11 A (max. 15 A); Low-voltage side input voltage: 280 to 600 V DC (optional from 0 V); Low-voltage side maximum current: 21 A (max. 33 A); Isolation present: Yes; Isolation voltage high- to low-voltage side: 2.5 kV; High side to ground: 4 kV; Low-voltage side to ground: 1.5 kV; Low-voltage side to control signals: 3 kV; Control: Digital control, self-supply from high- or low-voltage side (low voltage prioritised); Maximum efficiency: 98 %; Standby power consumption: < 3 W
