Technical data
| Manufacturer | Wenglor |
|---|---|
| Manufacturer part number | ED98PC3 |
| Condition | Used |
| Model family | ED98 |

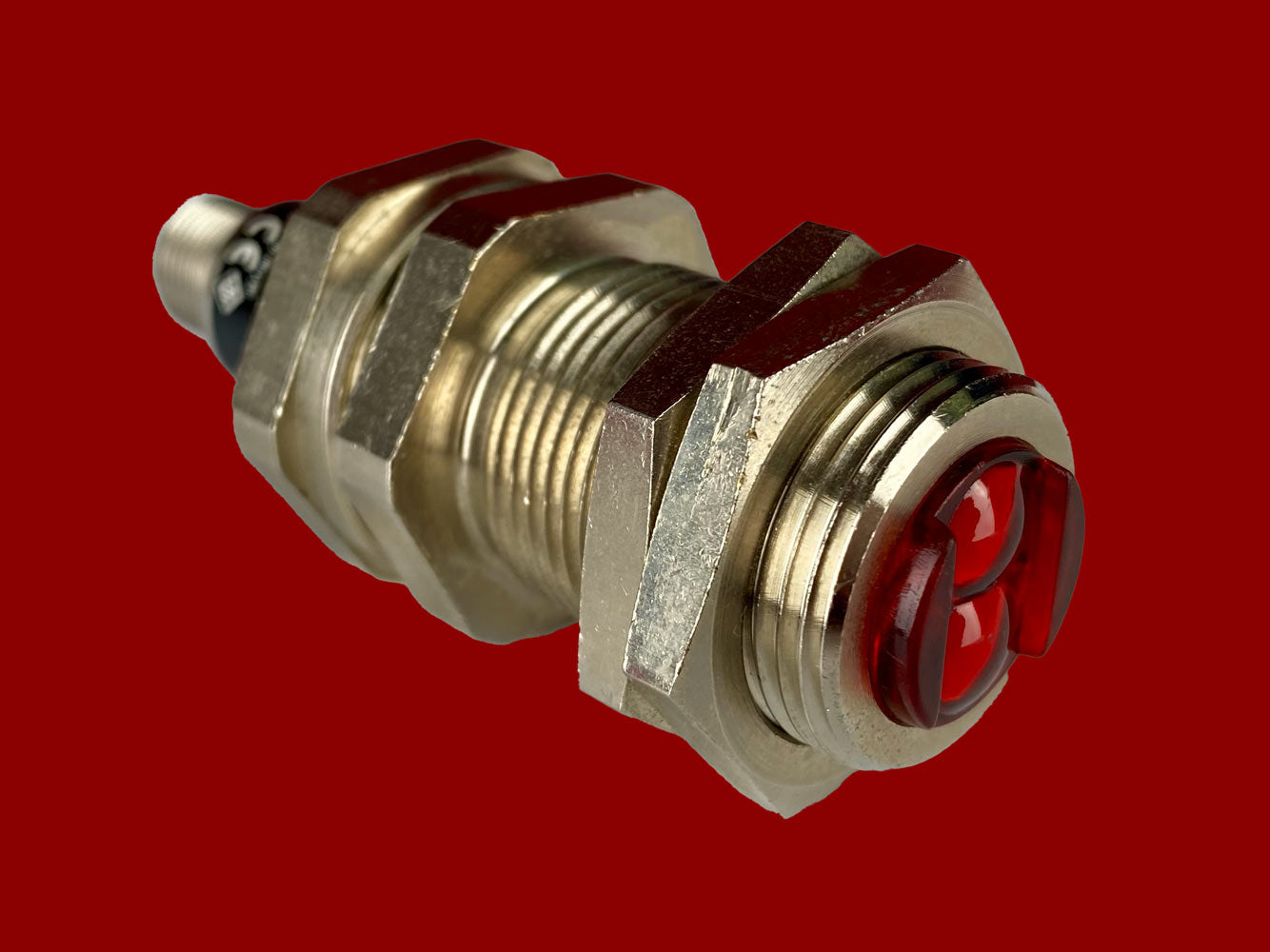

| Model | Through-beam photoelectric sensor |
| Product type | Sensors and Actuators |
Description
Sensing range: 10,000 mm; Switching hysteresis: < 15%; Light type: red light; Service life (Tu = +25 °C): 100,000 h; Max. permissible ambient light: 10,000 lux; Aperture angle: 6°; Sensor type: receiver; Supply voltage: 10–30 V DC; Current consumption (Ub = 24 V): < 40 mA; Switching frequency: 150 Hz; Response time: 3,300 µs; Temperature drift: < 10%; Temperature range: -10 ... 60 °C; Voltage drop switching output: < 2.5 V; Switching current PNP output: 200 mA; Residual current switching output: < 50 µA; Short-circuit proof: Yes; Reverse polarity protected: Yes; Overload proof: Yes; Protection class: III
