Technical data
| Manufacturer | Euchner |
|---|---|

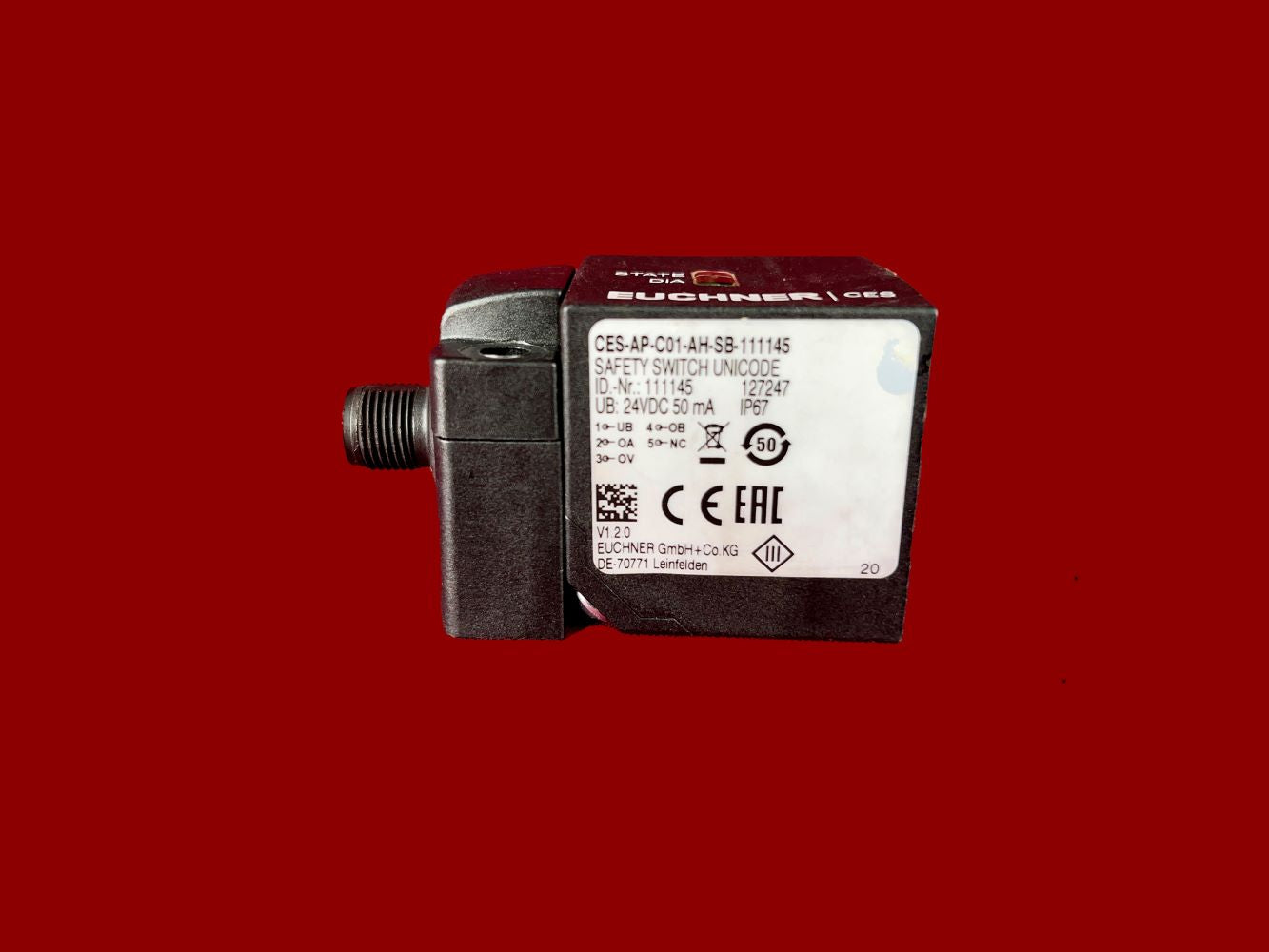

| Manufacturer part number | CES-AP-C01-AH-SB-111145 |
| Condition | Used |
| Model family | CES |
| Model | Non-contact safety switch |
| Product type | Safety Systems |
Description
Operating range
Repeat accuracy R per EN 60947-5-2: <= 10
Electrical connection data
External fusing (supply voltage): 0.25 ... 8 A
Rated insulation voltage Ui: 300 V
Rated impulse withstand voltage Uimp: 1.5 kV
Supply voltage DC UB: 24 V DC -15% ... +15% reverse-polarity protected, regulated, residual ripple < 5 %, PELV
Switch-on time safety outputs: max. 400 ms
EMC protection requirements: per EN IEC 60947-5-3
Response time per EN 60947-5-3: max. 260 ms
Protection class: III
Current consumption at unloaded outputs: max. 50 mA
Degree of pollution (external, per EN 60947-1): 3
Safety outputs OA / OB
Output type: semiconductor outputs, p-switching, short-circuit proof
Output voltage: HIGH U (OA, OB): UB-1.5 ... UB V DC
LOW U (OA, OB): 0 ... 1 V DC
Conditional rated short-circuit current: max. 100 A
Discrepancy time: max. 10 ms
Utilization category DC-13: 24V 400mA
Residual current Ir: max. 0.25 mA
Switching current per safety output: 1 ... 400 mA
Test pulse duration: max. 0.4 ms
Mechanical data and environment
Connection type: M12-Steckverbinder, 5-pin, pin 5 not assigned
Tightening torque mounting screws: max. 1 Nm
Ready delay: 0.5 s
Mounting position: any
Switching frequency: max. 1 Hz
Mounting distance: min. 40 mm
Shock and vibration resistance: per EN IEC 60947-5-3
Degree of protection: IP67
Ambient temperature: -20 ... +55 °C
Housing material: plastic, PBT
Repeat accuracy R per EN 60947-5-2: <= 10
Electrical connection data
External fusing (supply voltage): 0.25 ... 8 A
Rated insulation voltage Ui: 300 V
Rated impulse withstand voltage Uimp: 1.5 kV
Supply voltage DC UB: 24 V DC -15% ... +15% reverse-polarity protected, regulated, residual ripple < 5 %, PELV
Switch-on time safety outputs: max. 400 ms
EMC protection requirements: per EN IEC 60947-5-3
Response time per EN 60947-5-3: max. 260 ms
Protection class: III
Current consumption at unloaded outputs: max. 50 mA
Degree of pollution (external, per EN 60947-1): 3
Safety outputs OA / OB
Output type: semiconductor outputs, p-switching, short-circuit proof
Output voltage: HIGH U (OA, OB): UB-1.5 ... UB V DC
LOW U (OA, OB): 0 ... 1 V DC
Conditional rated short-circuit current: max. 100 A
Discrepancy time: max. 10 ms
Utilization category DC-13: 24V 400mA
Residual current Ir: max. 0.25 mA
Switching current per safety output: 1 ... 400 mA
Test pulse duration: max. 0.4 ms
Mechanical data and environment
Connection type: M12-Steckverbinder, 5-pin, pin 5 not assigned
Tightening torque mounting screws: max. 1 Nm
Ready delay: 0.5 s
Mounting position: any
Switching frequency: max. 1 Hz
Mounting distance: min. 40 mm
Shock and vibration resistance: per EN IEC 60947-5-3
Degree of protection: IP67
Ambient temperature: -20 ... +55 °C
Housing material: plastic, PBT
