Technical data
| Manufacturer | Keyence |
|---|---|

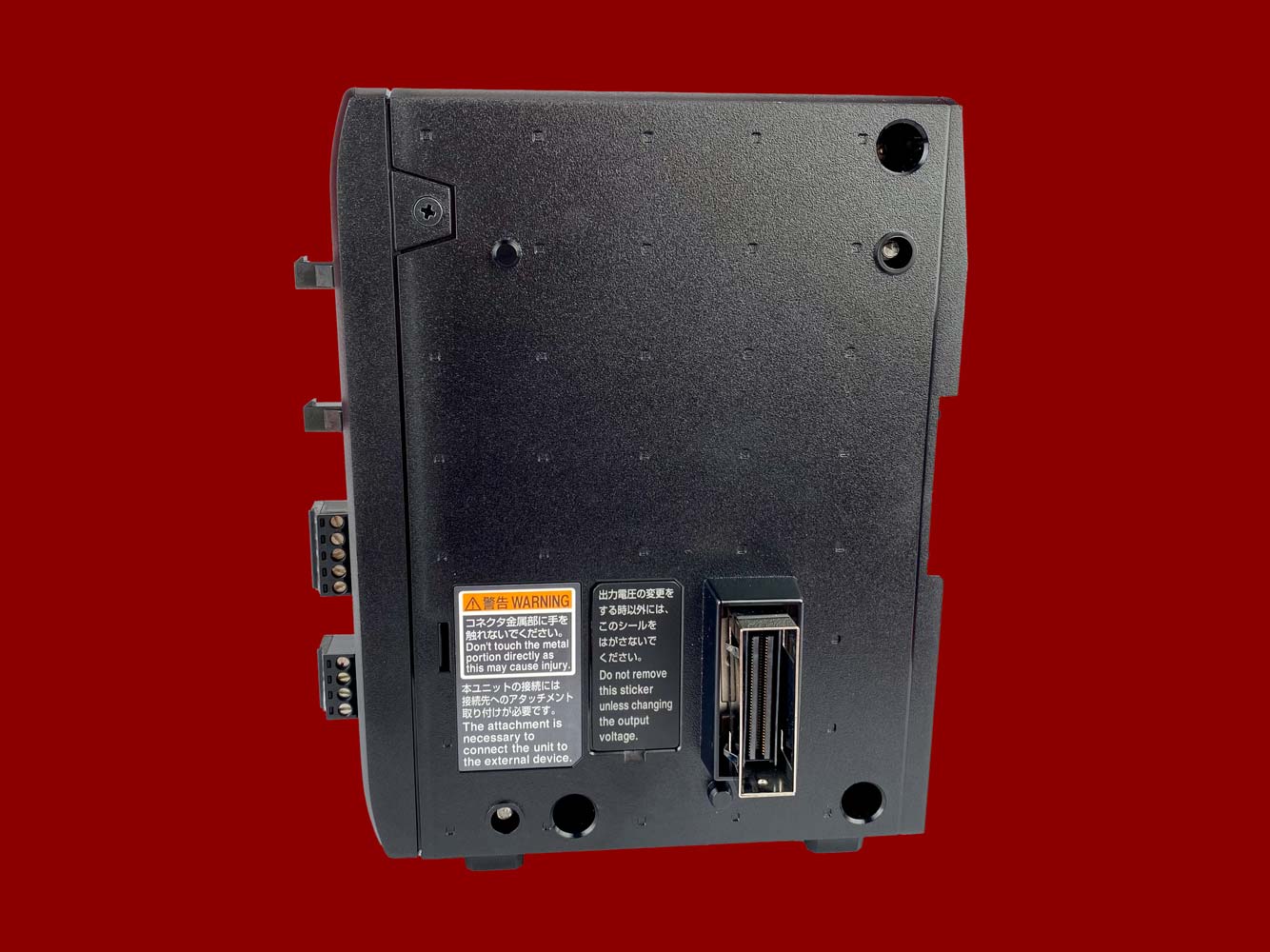

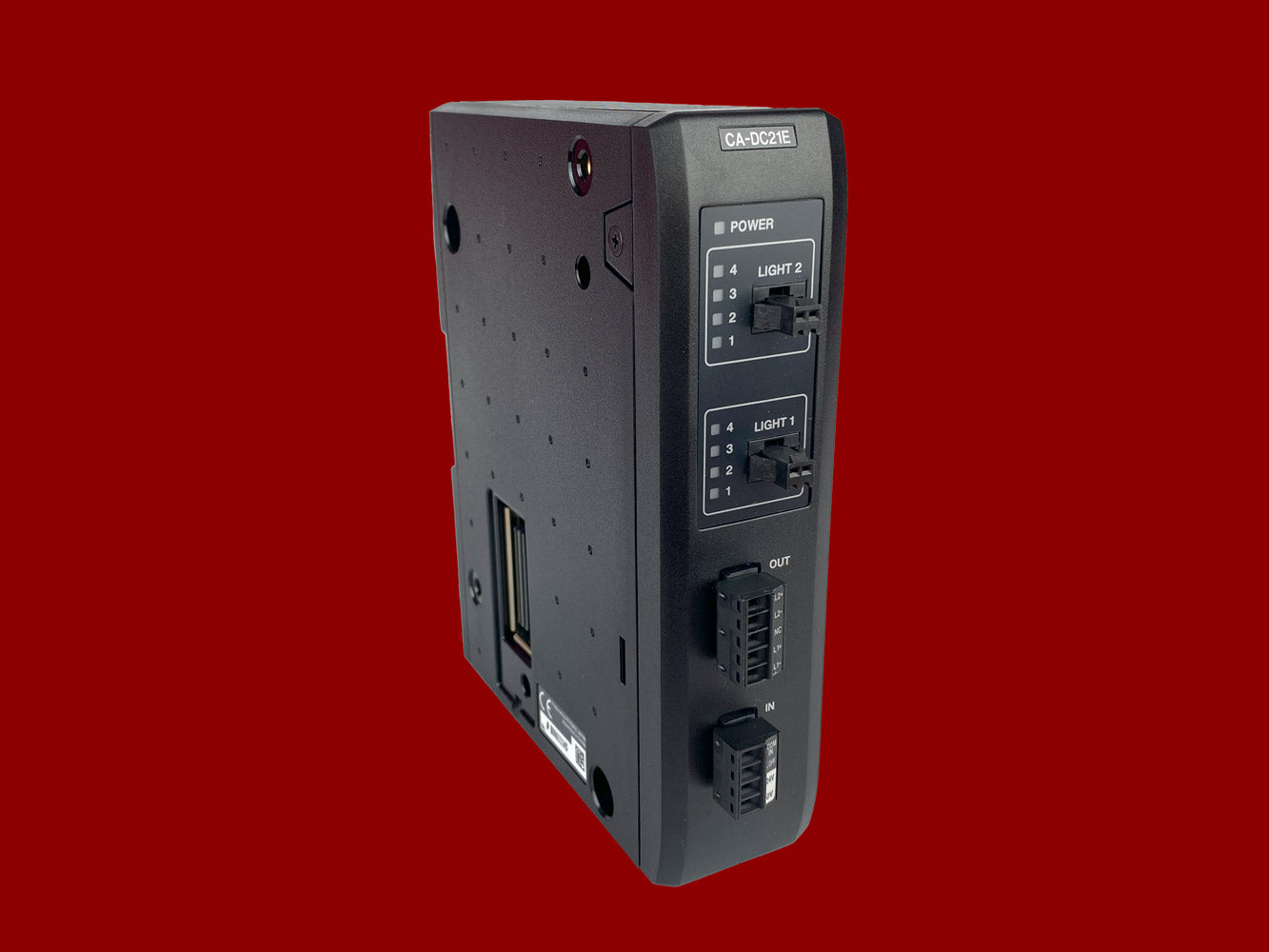

| Manufacturer part number | CA-DC21E |
| Condition | Used |
| Model family | CA-D |
| Model | LED lighting controller |
| Product type | Control Systems |
Description
Type: Lighting controller;
For XG/CV-5000/CV-X200/CV-X100 series only;
Input: Forced lighting shutdown: input voltage max. 26.4 V, min. 2 mA;
Output: Light control method (1) Constant voltage control method (DC lighting) (2) Pulse width modulation method (emission frequency: 100 kHz) [change via controller setting];
Brightness levels: 255 levels digital [change via controller setting];
Number of connections: 2 channels (available for LED connector and terminal block connection);
Voltage: 12 VDC/24 VDC [setting via DIP switch];
Power: max. 40 W (30 W per channel);
Synchronisation: synchronisation via FLASH output/continuous lighting [change via controller setting];
Response time: (1) Constant voltage control: max. 10 ms at 12 V output, max. 20 ms at 24 V output (2) Pulse width modulation method: max. 1 ms at 12/24 V output;
Display: LED indicator – current display, light quantity display.
