Balluff

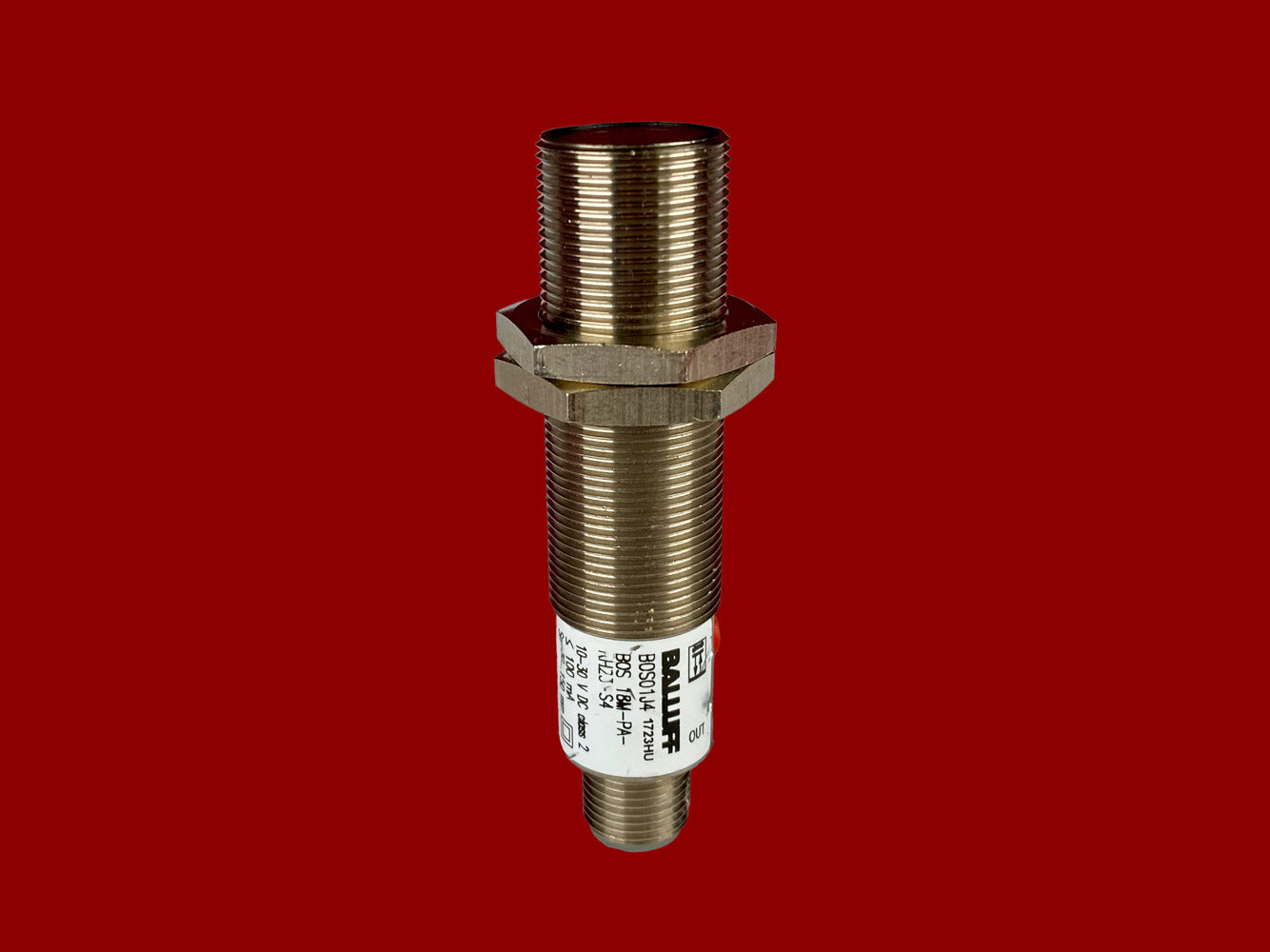

Balluff BOS 18M-PA-RH23-S4 BOS01J4 photoelectric proximity sensor
Technical data
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BOS 18M-PA-RH23-S4 |
| Condition | Used |
| Model family | BOS01J4 |
| Model | Photoelectric proximity sensor |
| Product type | Sensors and Actuators |
Description
Series: 18M; Dimension: diameter 18 x 75 mm; Interface: PNP normally open (NO), PNP normally closed (NC); Operating principle: photoelectric sensor; Optical operating principle: diffuse mode, triangulation; Optical feature: background suppression; Beam characteristic: divergent; Light type: LED red light; Light spot size: 10 x 10 mm at 150 mm; Sensing range: 30–150 mm; Connection: connector, M12x1-Stecker, 4-pin; Housing material: brass; Active face material: glass; Supply voltage Ub: 10–30 VDC
