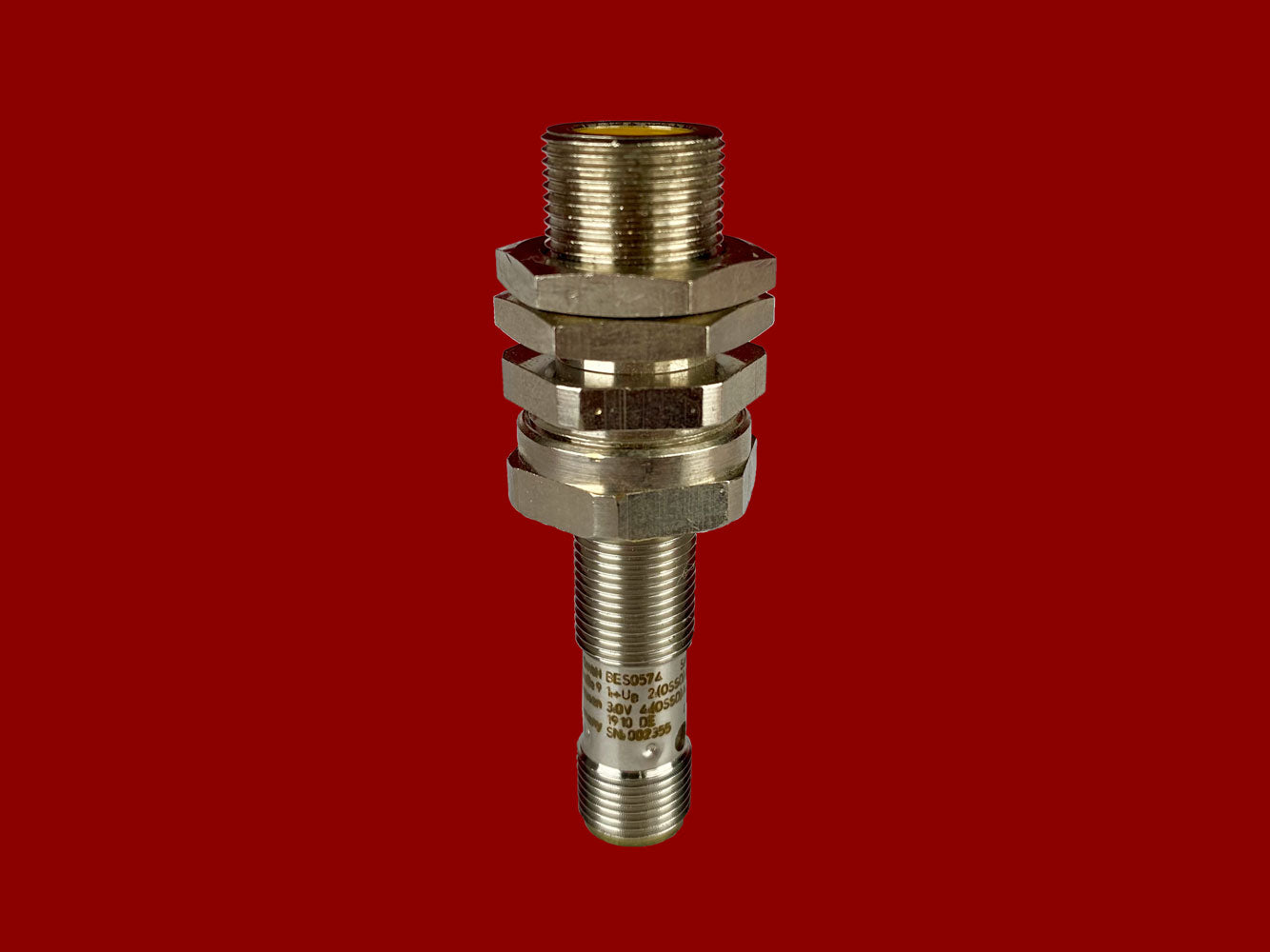

Balluff BES M12EN-PFC40F-S04G-D11 BES0574 Inductive Safety Sensor
Technical data
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BES M12EN-PFC40F-S04G-D11 |
| Condition | Used |
| Model family | BES0574 |
| Model | Inductive safety sensor |
| Product type | Sensors and Actuators |
Description
Performance Level: d
Safety Category (EN ISO 13849-1): 2
SIL (IEC 61508): 2
SIL CL (EN 62061): 2
Response time max.: 1 ms
Approval/Conformity: CE, cULus, Safety, WEEE
Operating principle: non-contact (inductive)
Approach direction: any to active face
Assured switch-on distance (Sao): 4 mm
Assured switch-off distance (Sar): 6 mm
Connection: M12x1-Stecker, 4-pin, A-coded
Switching output: PNP OSSD;PNP normally closed (NC)
Mounting: non-flush
Dimensions: Ø 12 x 70 mm
Ambient temperature:
For service life ≤ 10 years: -25...70 °C
For service life ≤ 20 years: 10...40 °C
Protection class: IP67
Housing material: Stainless steel (1.4404)
